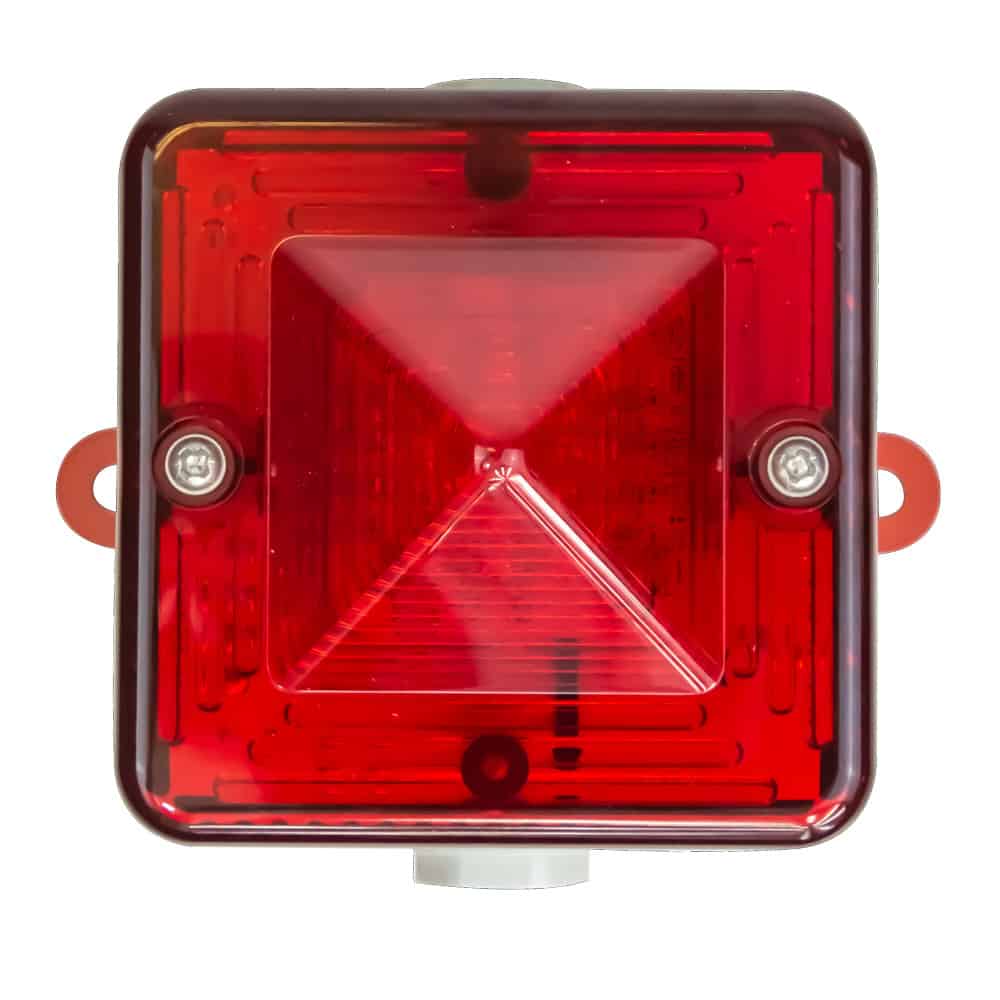

IECEx Flasher Red IS-L101L
Looking for a Specialty Gas? Click here
Not quite sure?
Our expert team are here to help answer any questions you have and provide customised solutions. Send an enquiry today.
Description
Specifications
Downloads
Accessories
Description
This IECEx intrinsically safe rated Flasher that can be used with the IS-A105N Sounder. It comes with the ability to have several different colours and holds an IP66 rating. This unit requires a Zener barrier or Galvanic Isolator to be classed as intrinsically safe.
Specifications
| Modes of Operation | Flasher |
|---|---|
| Light Colour | Red LED |
| Recommended Supply Voltage | 24 VDC |
| Supply Voltage Range | 16 VDC to 28 VDC Via Zener Barrier or Galvanic Isolator |
| Supply Current (Max.) | 25 mA @ 24 VDC |
| Dimension | 115 x 97 x 93 mm (H, W, D) |
| Weight | 400 g |
| Mounting | Wall mount |
| Cable Entry | 2 x M20 |
| Operating Temperature | -40 to 70°C |
| Operating Humidity | 95% RH (non-condensing) |
| IP Rating | IP66 |
| Certification | IS Class I, Zone 0. Aex ia IIC T4 Ta=+60°C |
| Warranty | 12 Months |
