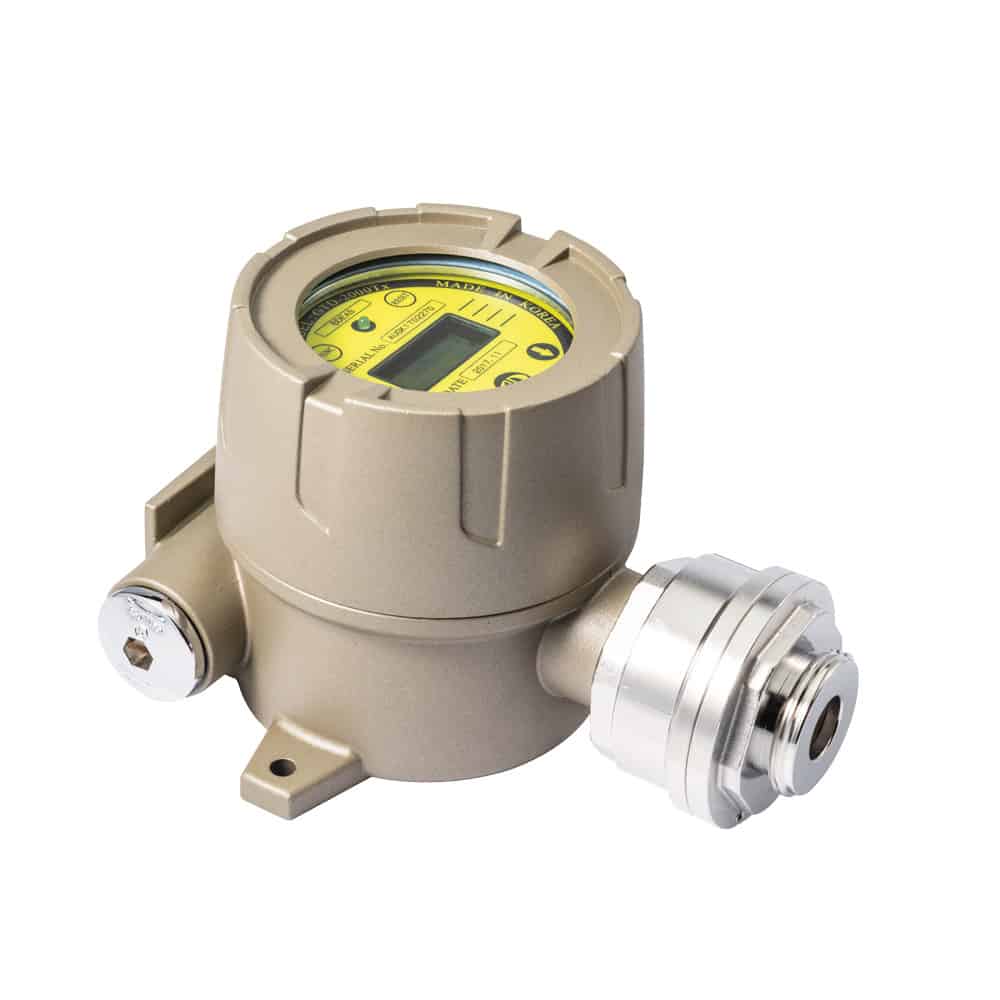

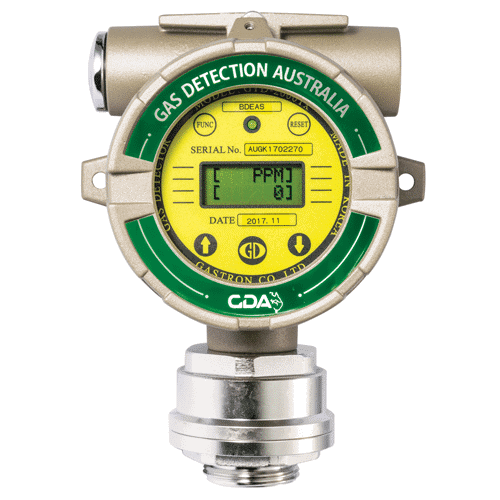

GTD-2000Tx IECEx Gas Detector Germane (GeH4) 0-15 ppm
Not quite sure?
Our expert team are here to help answer any questions you have and provide customised solutions. Send an enquiry today.
Continuous detection of toxic gases and oxygen in explosion hazardous area with flame proof structure
Self diagnosis function with built-in Microprocessor
Excellent selectivity by adapting detection principle only for toxic gases & oxygen
Superior performance for detecting toxic gases below TLV
Multi functions and high quality with low cost of ownership
Built-in back light LCD or OLED display
Easy configuration of monitoring system by HART communication
Auto calibration and program setting with a magnet bar
4-20mA (Current source or Sink) output signal
| Detectable Gas | Germane (GeH4) |
|---|---|
| Sensor Technology | Electro-Chemical Cell, Photoionization detector(PID) |
| Sensing Method | Diffusion |
| Accuracy | ≤ ±3% / Full Range |
| Warm Up Time | 180 sec |
| Display Type | LCD |
| User Interface Type | Magnet-Bar, |
| Recommended Supply Voltage | 24 VDC (±10%) |
| Supply Voltage Range | 18 VDC to 32 VDC |
| Supply Power (Max.) | 3.6 W @ 24 VDC |
| Supply Current (Max.) | 150 mA @ 24 VDC |
| Outputs | 1x Analogue |
| Output Specifications | 4-20 mA (500 ohms max load) |
| Analogue Output Specifications | 4 – 20 mA |
| Digital Communications | HART Interface |
| Digital Output Specifications | HART REV7 (Option) |

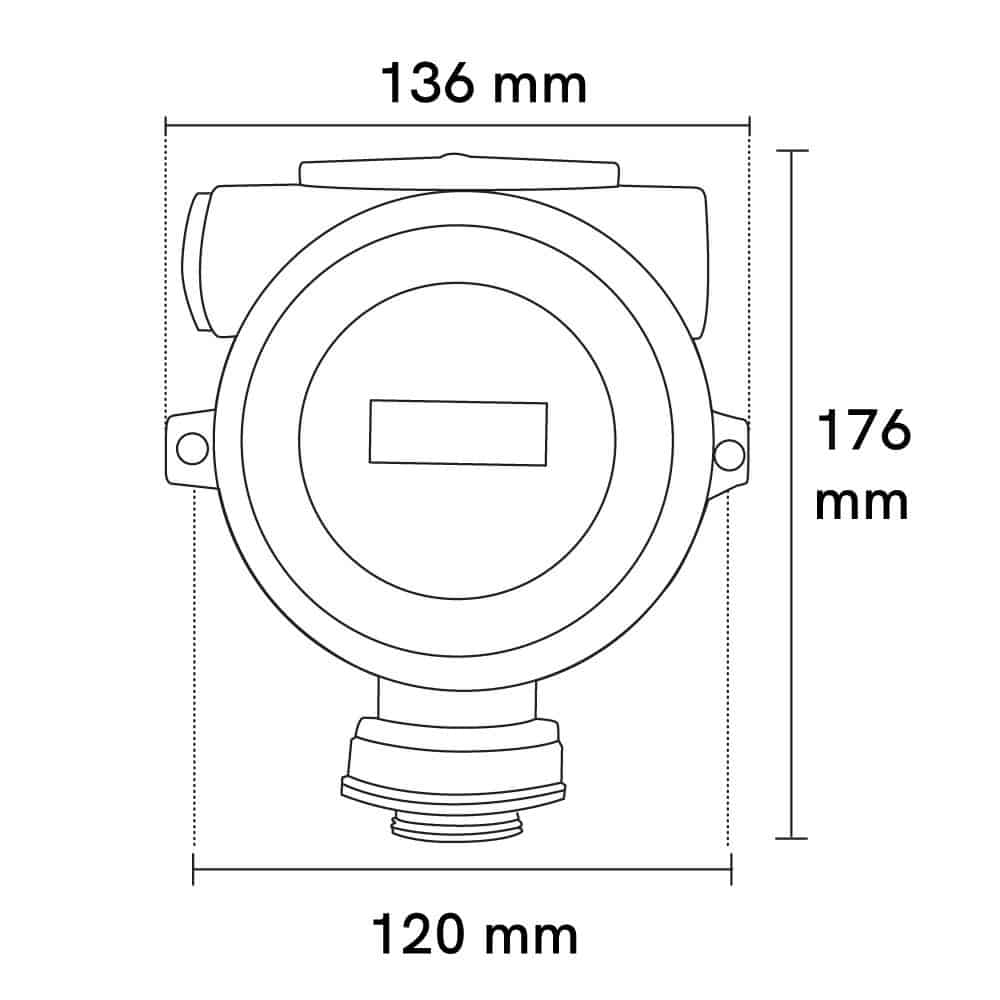

| Dimension | 136 x 176 x 110 mm (WxHxD) |
| Weight | App. 1.5 kg |
| Material Enclosure | Aluminum Alloy |
| Material Sensor | Stainless Steel (STS316) |
| Mounting | Wall mount |
| Cable Entry | 2 x 3/4" NPT |
| Operating Temperature | -40 to 80 °C |
| Storage Temperature | -40 to 80 °C |
| Operating Humidity | 5 to 99% RH (non-condensing) |
| Operating Pressure | 90 to 110 KPa |
| Max. Air Velocity | 6 m/s |
| IP Rating | IP65 |
| Certification | ATEX/IECEX: II 2 G, Ex db IIC Gb T4,T6 |
| Warranty | 2 Years |
| Sensor Warranty | 1 Year |
