YL40 Red Sounder and Flasher
Looking for a Specialty Gas? Click here
Not quite sure?
Our expert team are here to help answer any questions you have and provide customised solutions. Send an enquiry today.
Description
Specifications
Downloads
Accessories
Description
This combined sounder flasher unit boasts an impressive IP65, with a sounder rated to 106dB with 32 different sounds and is available in either Red or Yellow. It uses a Xenon Flasher for great high impact results.
Specifications
| Modes of Operation | Sounder / Flasher |
|---|---|
| Light Colour | Red LED |
| Sounder Output | 106 dB @ 1 m |
| Sounder Specifications | 32 user selectable tones |
| Recommended Supply Voltage | 24 VDC |
| Supply Current (Max.) | 285 mA @ 24 VDC |

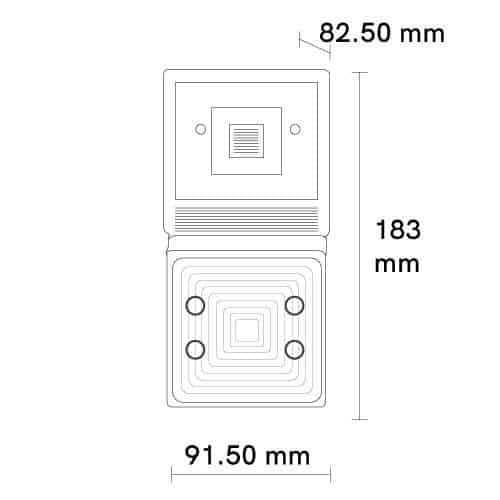

| Dimension | 183 x 90 x 81 mm (H, W, D) |
| Material Enclosure | Enclosure: ABS, flame retardant Lens: polycarbonate plastic, flame retardant |
| Mounting | Wall mount |
| Operating Temperature | -35 to 66°C |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| IP Rating | IP65 |
| Warranty | 12 Months |
Downloads
Manuals
No manuals to display
Infosheets
No infosheets to display
Accessories
