SGT-P Portable Gas Detector Hydrogen Sulfide (H₂S) 0-100 ppm IECEx Approved
Not quite sure?
Our expert team are here to help answer any questions you have and provide customised solutions. Send an enquiry today.

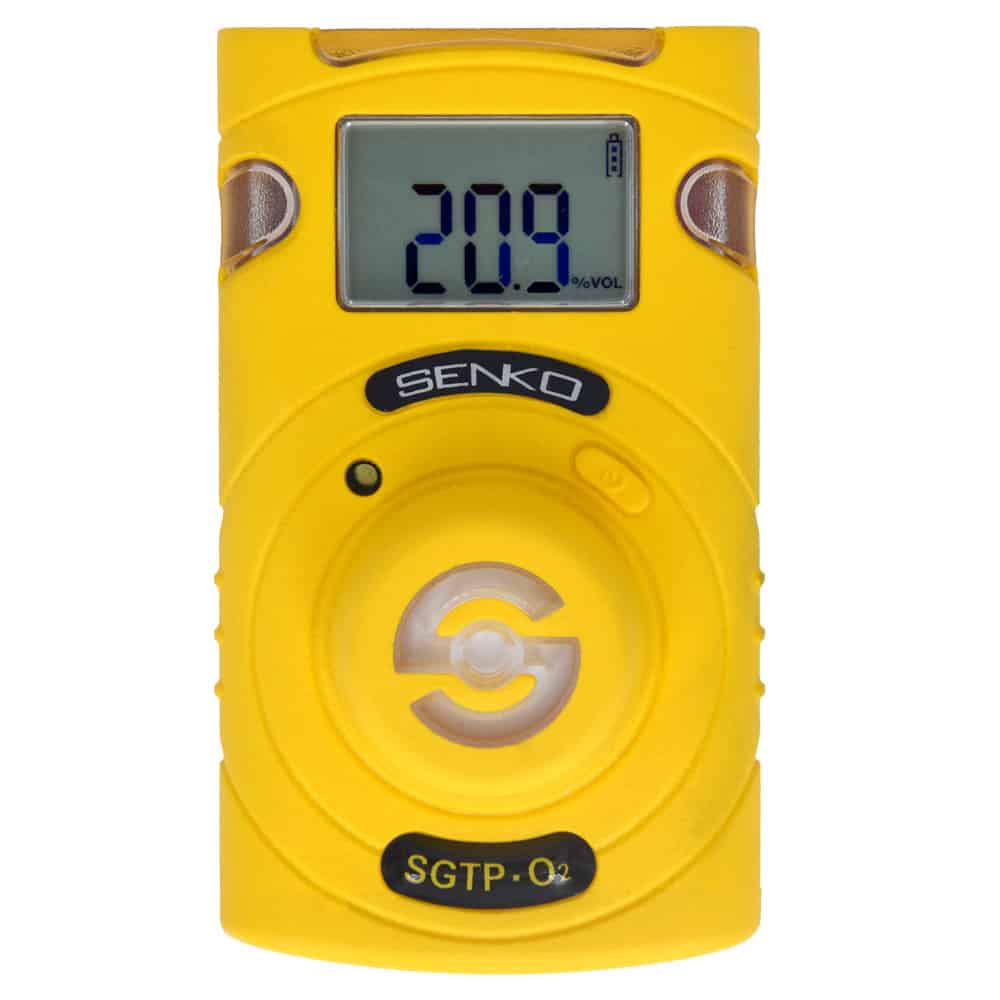

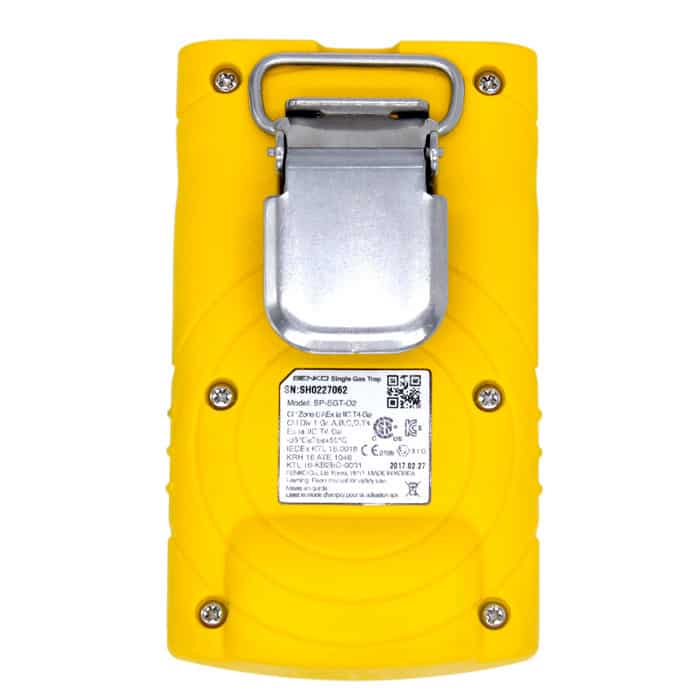

The SGT-P portable is a single gas detector designed to detect hydrogen sulphide (H2S), carbon monoxide
CO), Ammonia (NH3), Hydrogen (H2), Sulphur dioxide (SO2), or oxygen (O2). The SGT-P has a replaceable gas sensor and battery, giving an unlimited lifetime of operation. When activated, SGT-P continuously monitors ambient air for the presence of a specific gas and alerts the user to potentially unsafe exposure with LED, vibrating, and audible alarms in the event that gas concentration exceeds alarm set points.
| Detectable Gas | Hydrogen Sulfide (H₂S) |
|---|---|
| Detectable Gas Range | 0-100 ppm |
| Sensor Technology | Electrochemical Cell |
| Sensing Method | Diffusion |
| Potential Sensor Operating Life | > 2 year |
| Display Type | LCD Display (Back-light) |
| User Interface Type | Button |
| Internal Buzzer | Yes |
| Battery Life | 2 Years |
| Light Colour | Red |
| Dimension | 54 x 91 x 32 mm (W x H x D) |
| Weight | 93 g |
| Material Enclosure | Polycarbonate and rubber |
| Operating Temperature | -40°C to +50°C |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| IP Rating | IP66/IP67 |
| Certification | ATEX II 1G Ex ia IIC T4 Ga I |
| Warranty | 2 Years |
