Description

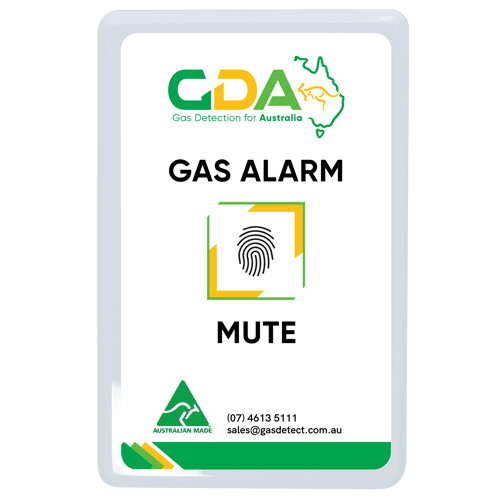

The Repeater Panel indicates gas alarm levels with LEDs and a buzzer, warning you before you enter a room. An external sounder/flasher can be connected to the Repeater Panel. The main use for this unit is to be mounted outside a secondary entrance to the room.
Specifications
| Display Type | LEDs |
|---|---|
| User Interface Type | Mute/Test Button |
| Internal Buzzer | Yes |
| Recommended Supply Voltage | 24 VDC |
| Supply Power (Avg.) | 24 VDC |
| Supply Current (Max.) | 25 mA |
| Inputs | 4 x Analogue |
| Input Specifications | 24 VDC to Alarm 1, Alarm 2, Alarm O2, Fault |
| Dimension | 116 x 75 x 20 mm (L, W, D) |
| Material Enclosure | ABS Plastic |
| Mounting | Flush Mount |
| Operating Temperature | -10°C to 40°C |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Warranty | 12 Months |
