Description

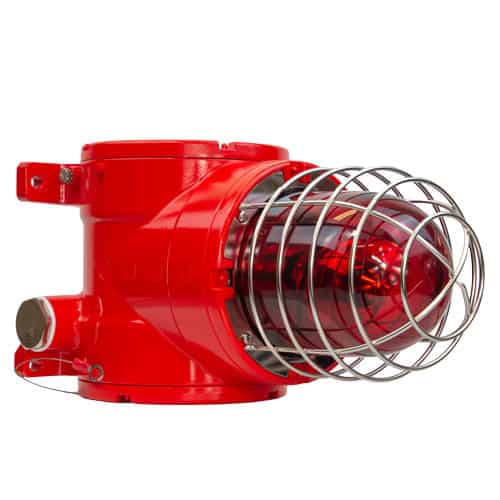

This IECEx rated Beacon boasts not only an IP66 rating but also the ability to select your desired rotational speed and several different colour options. This unit can also be paired not only as a traffic light but also with the GTL-200B – Sounder.
Specifications
| Light Colour | Red, Yellow |
|---|---|
| Modes of Operation | LED Lens / Rotating Reflection |
| Recommended Supply Voltage | 24 VDC |
| Supply Voltage Range | 12 VDC to 48 VDC |
| Supply Power (Max.) | 5.1 W @ 24 VDC |
| Supply Current (Max.) | 0.5 A @ 24 VDC |
| Dimension | 165 x 279 x 177 mm (H, W, D) |
| Material Enclosure | Body : ALDC12, Glass : Explosion-proof Tempered glass, Protection case: SS316L |
| Mounting | Wall mount |
| Cable Entry | 2 x 3/4" NPT |
| Operating Temperature | T4: -40 to 70°C |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| IP Rating | IP66 |
| Certification | Ex d IIC T6…T4 Gb |
| Warranty | 2 Years |
