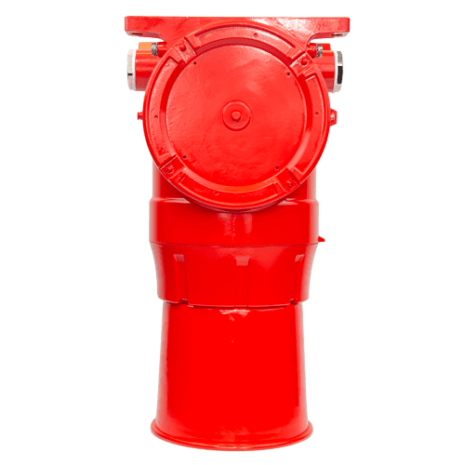

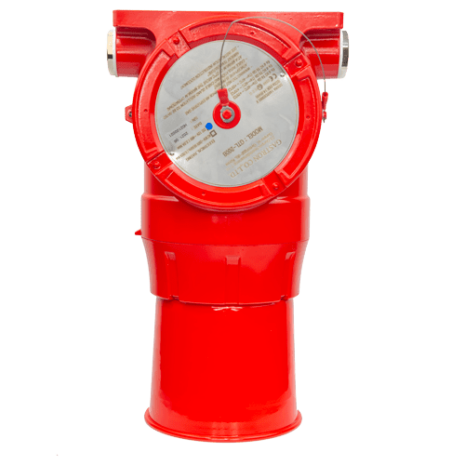

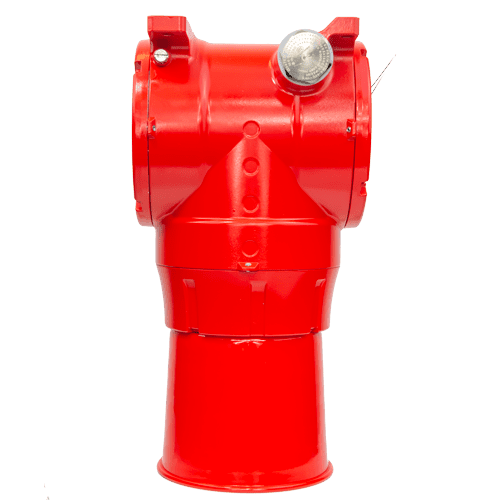

GTL-200B IECEx Electronic Sounder up to 120dB at 1m IP66
Looking for a Specialty Gas? Click here
Not quite sure?
Our expert team are here to help answer any questions you have and provide customised solutions. Send an enquiry today.
Description
Specifications
Downloads
Accessories
Description
This IECEx approved Sounder boasts a max 120dB sounder that has and internal adjustment and is rated to IP66. This sounder also has the option to select from 64 different sound types and it can also connect with the GTL-200L series of Beacons.
Specifications
| Modes of Operation | Sounder |
|---|---|
| Sounder Output | 110 dB @ 1 m MAX 120 dB @ 1 m |
| Sounder Specifications | 64 user selectable tones |
| Recommended Supply Voltage | 24 VDC |
| Supply Voltage Range | 12 VDC to 48 VDC |
| Supply Power (Max.) | 17.8 W @ 24 VDC |
| Supply Current (Max.) | 1 A @ 24 VDC |
| Dimension | 164 x 139 x 177 mm (H, W, D) |
| Material Enclosure | Body : ALDC12 |
| Mounting | Wall mount |
| Cable Entry | 2 x 3/4" NPT |
| Operating Temperature | T4: -40 to 70°C |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| IP Rating | IP66 |
| Certification | Ex d IIC T6…T4 Gb |
| Warranty | 2 Years |
Downloads

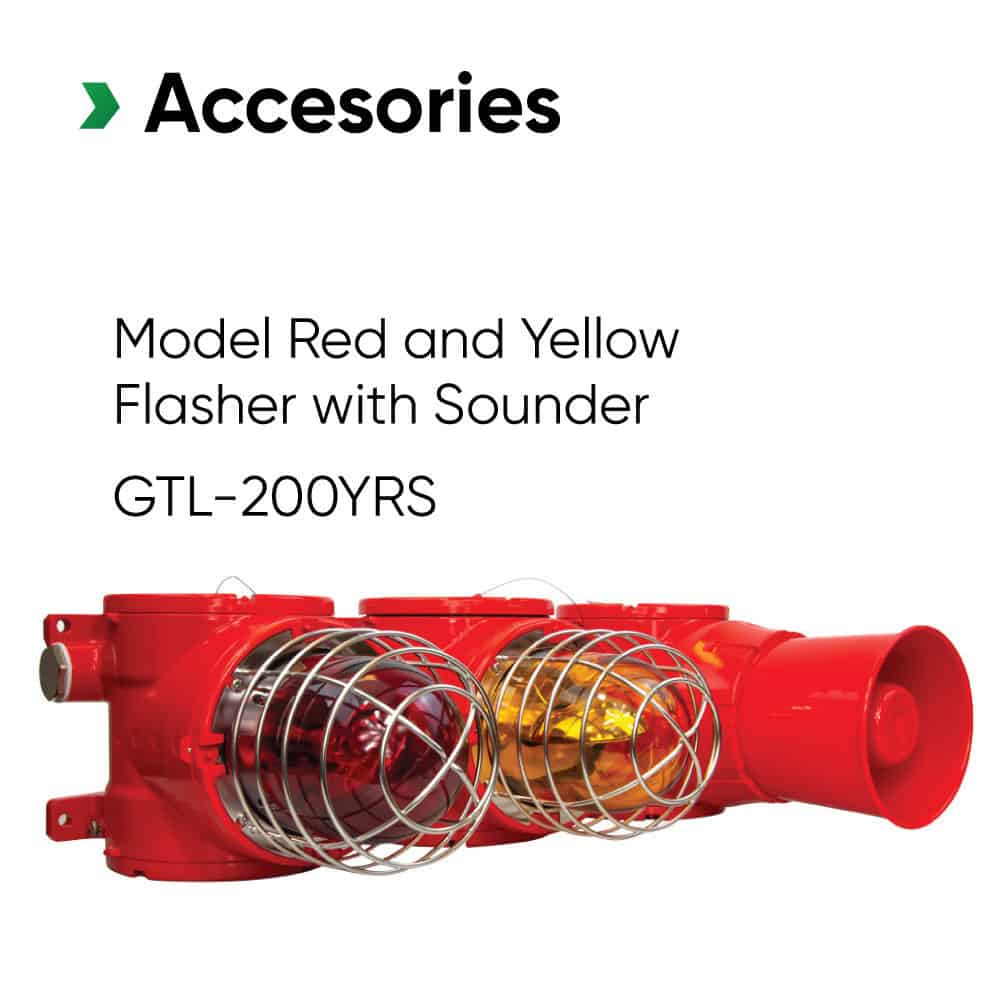

Accessories
