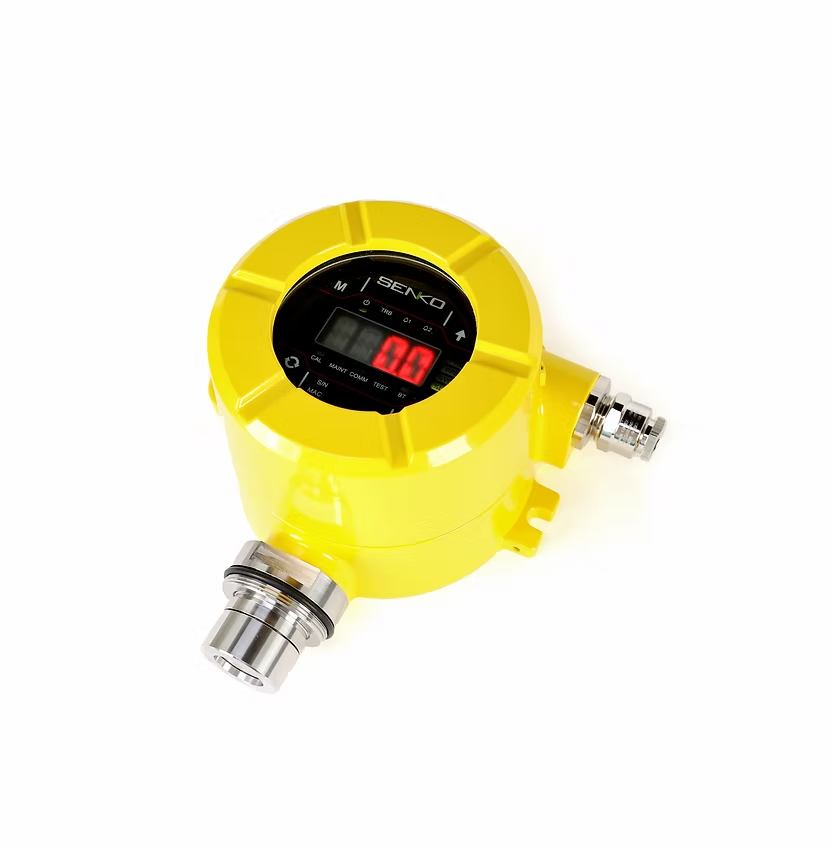

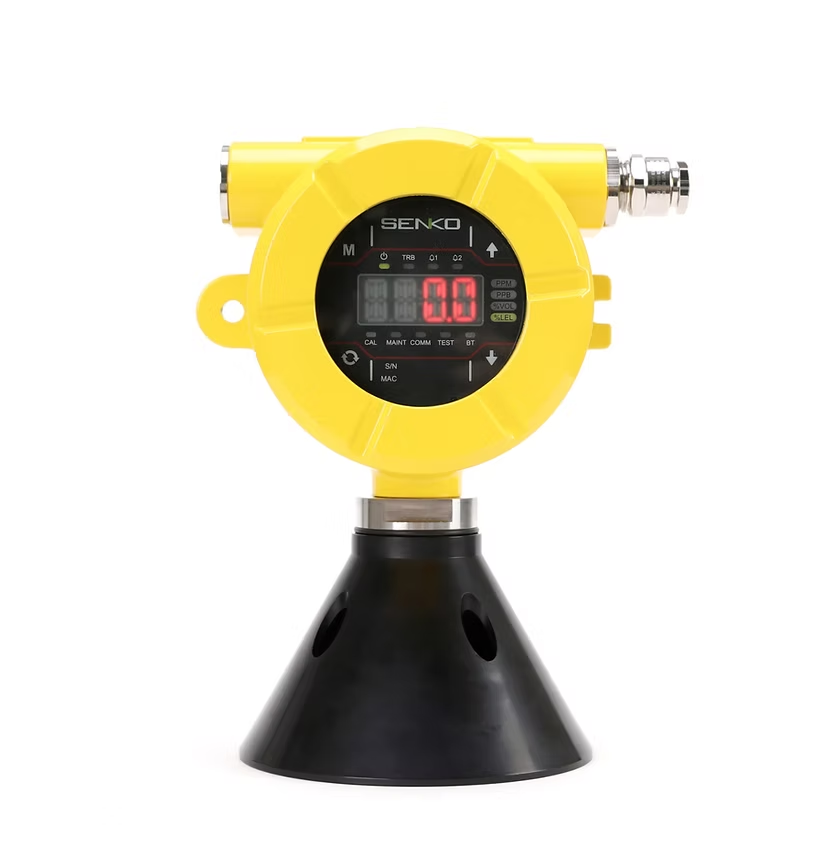

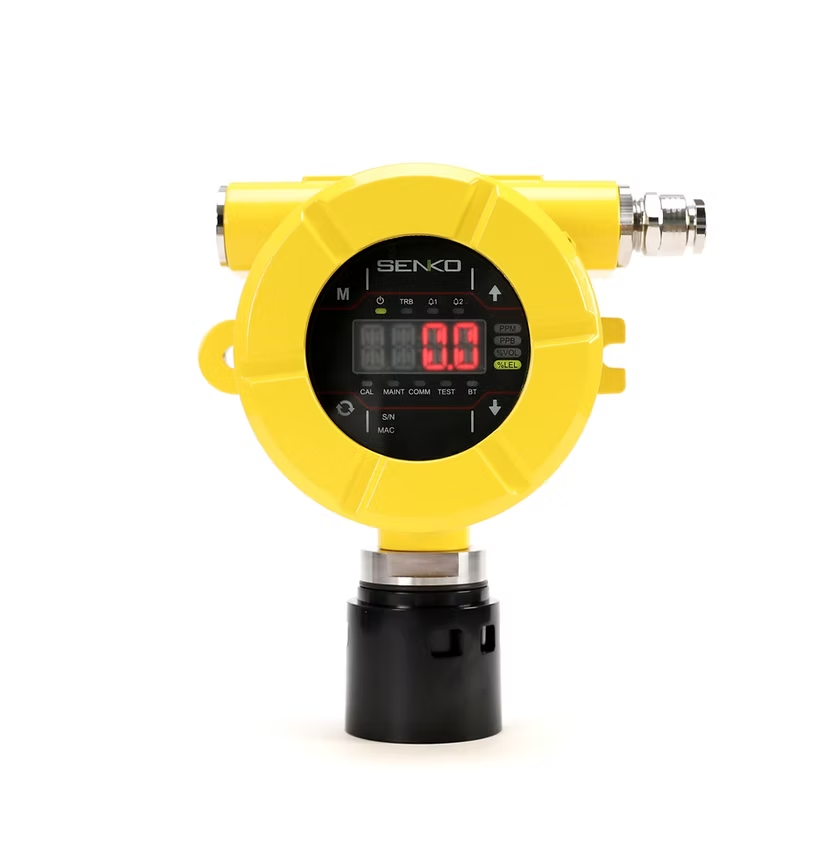

SENKO SI-200E Diffusion Type Fixed Gas Detector
The SI-200E is the next-generation of fixed gas detection, offering enhanced durability, advanced detection technology, explosion-proof certification, and multiple communication options.
Need Assistance? 1300 432 937
The Senko SI-200E is the next-generation of fixed gas detection, offering enhanced durability, advanced detection technology, explosion-proof certification, and multiple communication options. SI-200E supports multiple communication interfaces like 4-20mA output and RS-485, allowing it to integrate seamlessly with external systems. This enables real-time monitoring and control through central systems providing reliable performance in harsh and hazardous industrial environments. It has a wireless communication function so the user can transfer the measuring data to their mobile devices.
| Weight | 3 kg |
|---|---|
| Detectable Gas | Oxygen O2 Carbon Monoxide CO Sulfur Dioxide SO2 Hydrogen H2 Hydrogen Sulfide H2S Ammonia NH3 Acetylene C2 H2 Ethanol C2 H6 Toluene C7 H8 Methane CH4 Carbon Dioxide CO2 VOC Xylene C8 H10 Hydrogen peroxide H2 O2 Nitrogen Dioxide Ethylene oxide C2 H4 Ethylene C2 H4 Nitrogen Monoxide NO |
| Sensor Technology | Electro-Chemical Cell, Catalytic, IR |
| Sensing Method | Diffusion |
| Warm Up Time | 180 sec |
| Display Type | LCD (Green) |
| Recommended Supply Voltage | 24 VDC (±10%) |
| Outputs | 1x Analogue |
| Output Specifications | 4-20 mA |
| Analogue Output Specifications | 4 – 20 mA |
| Dimension | 169(W) x 188.5(D) x 107(H)mm |
| Weight | 2.4Kg |
| Material Enclosure | Aluminum |
| Mounting | Wall mount |
| Operating Temperature | -40°C ~ +60°C |
| Certification | IECEx : Ex ia IIC T4 Ga / Ex db IIC T6 Gb |
| Warranty | Device – 2 years |
| Sensor Warranty | 1 Year |
| Alarm Relays |
