GDA iR-gas Carbon Dioxide (Infrared CO2) Gas Detector 0-5% Vol. (Stainless Steel)
Our Infrared CO2 gas detector, “iR-gas 4370”, is designed for use in safe area applications.
Need Assistance? 1300 432 937
Meet our Infrared CO2 Gas Detector iR-gas 4370 Stainless Steel stinting
Our Infrared CO2 gas detector, “iR-gas 4370”, is designed for use in safe area applications. This infrared CO2 sensor uses the latest laser semiconductor technology for the detection of carbon dioxide (CO2). This Infrared CO2 sensor and electronics are one homogenous unit and must never be separated. It has an analog output that can be set to 4-20mA, 0-20mA, 0-10V, or 0-5V.
| Detectable Gas | Carbon Dioxide (CO2) |
|---|---|
| Measuring Units | % vol. |
| Sensor Technology | Non Dispersive Infra-Red (NDIR), Dual Wavelength |
| Sensing Method | Diffusion |
| Accuracy | ± 2% FSD ±0.5% reading @STP |
| Response Time (τ90) | < 24 sec at STP |
| Warm Up Time | ~2 min |
| Span Calibration Gas | Synth Air |
| Zero Calibration Gas | Nitrogen |
| User Interface Type | Calibration Buttons |
| Recommended Supply Voltage | 24 VDC |
| Supply Current (Max.) | 150 mA @ 24VDC |
| Outputs | 1 x Analogue |
| Output Specifications | 0-20 mA, 4-20 mA, 0-5 VDC, 0-10 VDC (4-20 mA Default) |
| Analogue Output Specifications | 4-20 mA (500 ohms max load) |

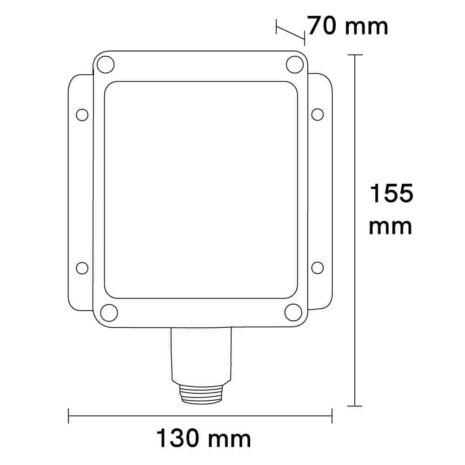

| Dimension | 116 x 130 x 72 mm (L x W x D) |
| Weight | 300 g |
| Material | ABS Plastic |
| Material Sensor | Stainless Steel |
| Mounting | Wall Mount |
| Mounting Height | 300-500 mm From Floor |
| Operating Temperature | -25 to 55 °C |
| Storage Temperature | -40 to 70 °C |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Operating Pressure | 500 to 1050 hPa |
| IP Rating | IP40 |
| Warranty | 12 Months |
