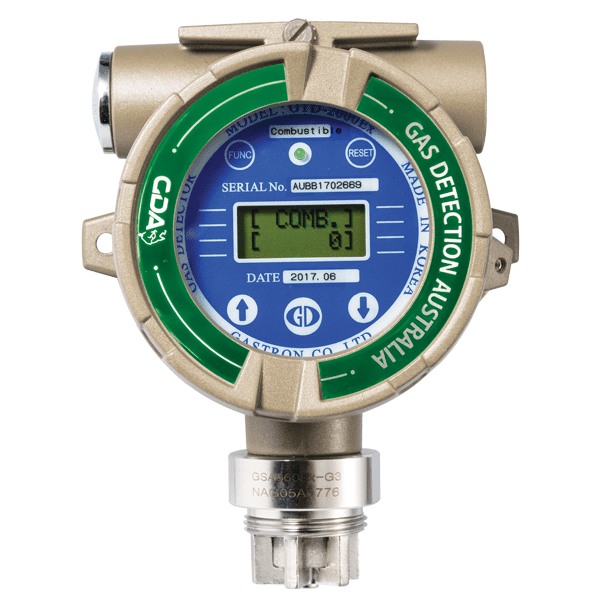

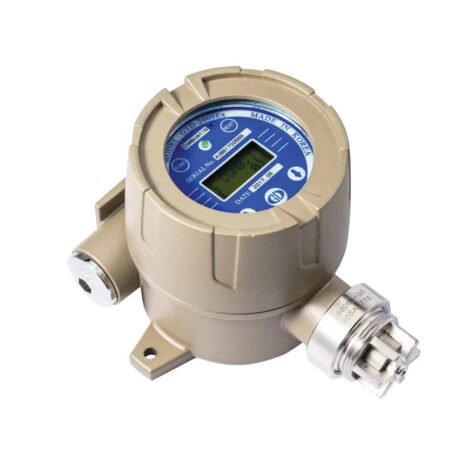

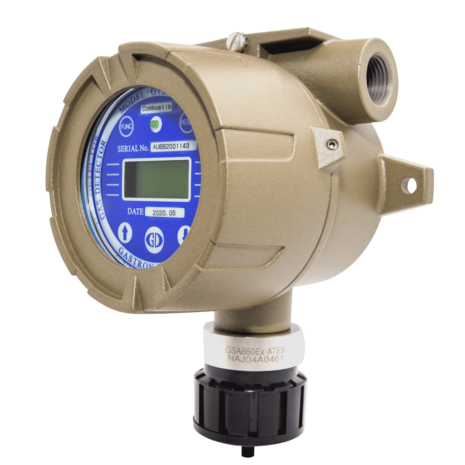

GTD-2000Ex IECEx Gas Detector Acetylene (C2H2) 0-100% LEL
Continuous detection of flammable gases in explosion hazardous area with flame proof structure.
Need Assistance? 1300 432 937
Description
Specifications
Downloads
Continuous detection of flammable gases in explosion hazardous area with flame proof structure.
| Detectable Gas | Acetylene (C2H2) |
|---|---|
| Sensor Technology | Electro-Chemical Cell, Photoionization detector(PID) |
| Sensing Method | Diffusion |
| Accuracy | ≤ ±3% / Full Range |
| Warm Up Time | 180 sec |
| Display Type | LCD |
| User Interface Type | Magnet-Bar, Function Buttons |
| Recommended Supply Voltage | 24 VDC (±10%) |
| Supply Voltage Range | 18 VDC to 32 VDC |
| Supply Power (Max.) | 3.6 W @ 24 VDC |
| Supply Current (Max.) | 150 mA @ 24 VDC |
| Outputs | 1x Analogue |
| Output Specifications | 4-20 mA (500 ohms max load) |
| Analogue Output Specifications | 4 – 20 mA |
| Digital Communications | HART Interface |
| Digital Output Specifications | HART REV7 (Option) |
| Dimension | 136 x 176 x 110 mm (WxHxD) |
| Weight | App. 1.5 kg |
| Material Enclosure | Aluminum Alloy |
| Material Sensor | Stainless Steel (STS316) |
| Mounting | Wall mount |
| Cable Entry | 2 x 3/4" NPT |
| Operating Temperature | -40 to 80 °C |
| Storage Temperature | -40 to 80 °C |
| Operating Humidity | 5 to 99% RH (non-condensing) |
| Operating Pressure | 90 to 110 KPa |
| Max. Air Velocity | 6 m/s |
| IP Rating | IP65 |
| Certification | ATEX/IECEX: II 2 G, Ex db IIC Gb T4,T6 |
| Warranty | 2 Years |
| Sensor Warranty | 1 Year |
