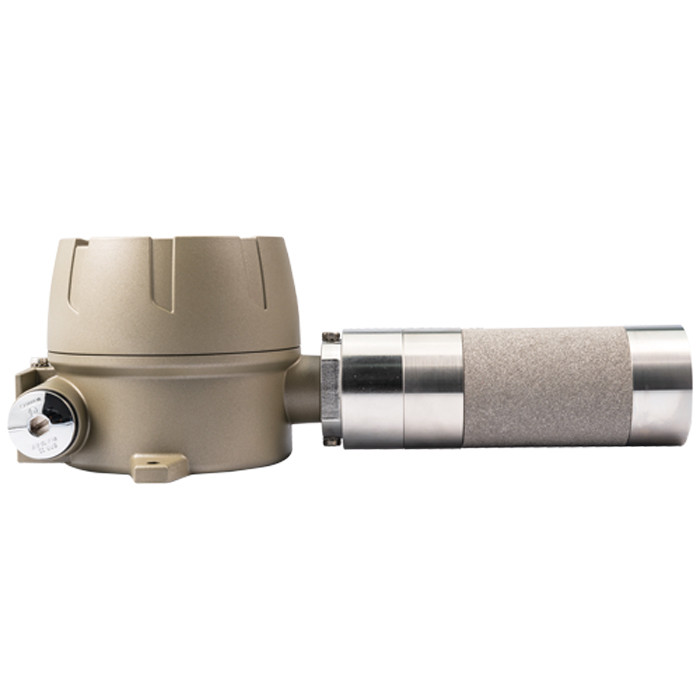

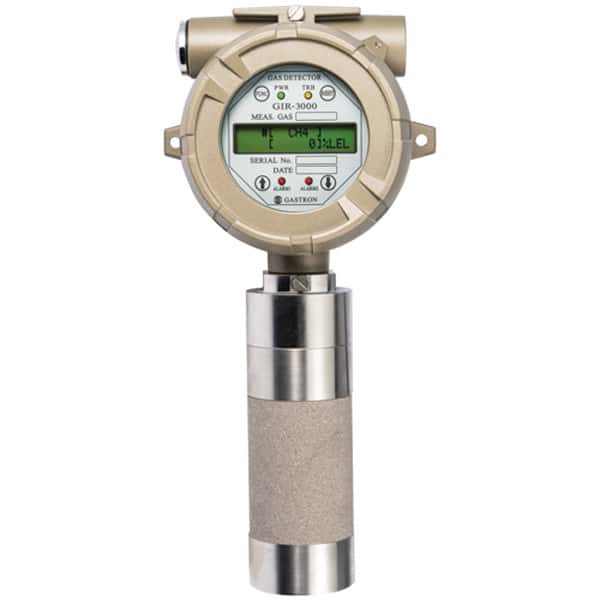

GIR-3000 IECEx Infrared Gas Detector Carbon Monoxide (CO) 0-2% vol.
Continuous detection of flammable, CO2, CO and N2O gases in explosion hazardous area with flame proof structure.
Need Assistance? 1300 432 937
Description
Specifications
Downloads
- Continuous detection of flammable, CO2, CO and N2O gases in explosion hazardous area with flame proof structure
- State-of-the art infrared detection principle
- Long service life time (more than 5 years)
- Operation in non oxygen environment
- Self diagnosis function with built-in Microprocessor
- Fast response time(<5 sec)
- Built-in back light LCD or OLED display
- Auto calibration and program setting with a magnet bar
- 2-stage alarm, 1-trouble display and relay contact output
- 4-20mA (Current source or Sink) output signal
- Easy configuration of monitoring system by RS-485 Modbus or HART communication
- Calibration and maintenance by one-man
- With the alarm unit (GTL-100)
- Normal : Green LED
- Alarm : Red LED, Buzzer (95dB)
- Trouble : Yellow LED
| Detectable Gas | Carbon monoxide (CO) |
|---|---|
| Sensor Technology | |
| Sensing Method | Diffusion |
| Accuracy | |
| Display Type | |
| User interface | |
| Recommended Supply Voltage | 24 VDC (±10%) |
| Supply Voltage Range | 18 VDC to 31 VDC |
| Supply Power (Max.) | 9.6 W @ 24 VDC |
| Supply Current (Max.) | 400 mA @ 24 VDC |
| Outputs | 1 x Analogue, 3 x Digital |
| Output Specifications | |
| Analoge Output Specifications | 4 – 20 mA |
| Digital Communications | HART Interface |
| Digital Output Specifications | Alarm1, Alarm2, Fault Relay Rated 1.0 A @ 30VDC or 0.5 A @ 125 VAC HART REV7 (Option) |

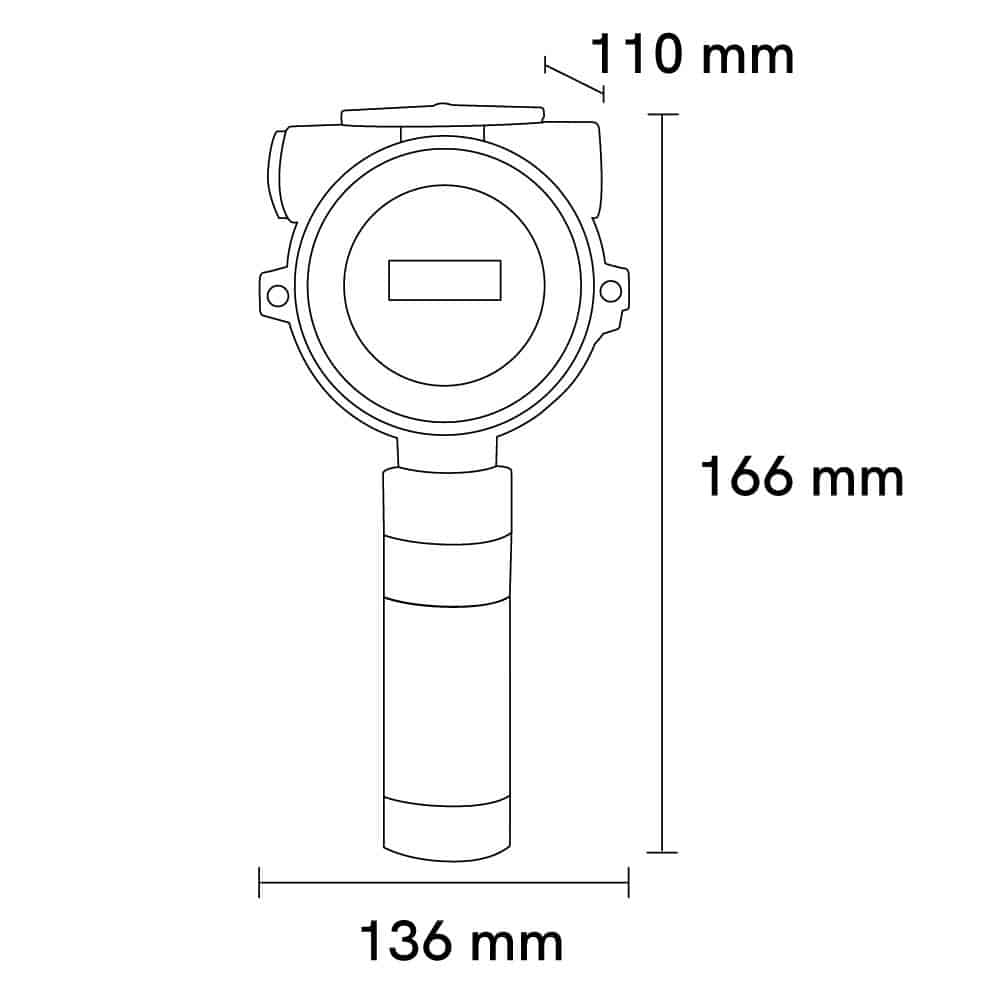

| Dimensions | |
| Material Enclosure | Aluminum Alloy |
| Material Sensor | Stainless Steel (STS316) |
| Mounting | Wall mount |
| Cable Entry | |
| Operating Temperature | |
| Storage Temperature | |
| Operating Humidity | |
| Operating Pressure | |
| Max. Air Velocity | |
| IP Rating of Enclosure | |
| Certification | ATEX/IECEX: II 2 G, Ex db IIC Gb T4,T6 |
| Warranty | |
| Sensor Warranty | 12 months |
