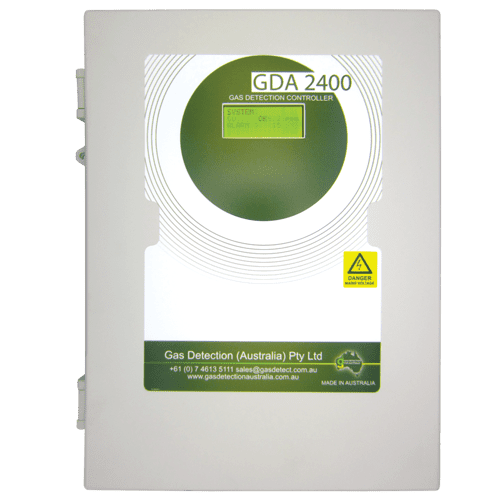

Multiplexed 8 Channel Gas Detection Controller
This Multi-channel single zoned Controller utilizes a multiplexer that is great for car parks and jobs where you only need to read a room value and are utilizing multiple sensors all of the same gas type.
Need Assistance? 1300 432 937
This Multi-channel single zoned Controller utilizes a multiplexer that is great for car parks and jobs where you only need to read a room value and are utilizing multiple sensors all of the same gas type. The number of sensors attached to this controller can be increased to 15. For your car park needs this controller has the functionality to control your ventilation fans by either Relay’s or ramping according to gas concentration. We also have our 660 version which enables you to control 3 extra fans giving you a total of 6. Although this controller looks basic it is packed with lots of features to assist in your daily operations.
| Analogue Output Specifications | 4 x 0 – 20 mA or 4 – 20 mA |
|---|---|
| Display Type | LCD |
| User Interface Type | PCB Buttons |
| Supply Power (Avg.) | 24 VDC @ 3.2 A |
| Power Supply Rating | 230 VAC 1.52 A |
| Inputs | 8 x Multiplexed Channels |
| Input Specifications | 2-Wire Loop Powered / 3-Wire 4-20 mA |
| Outputs | Controller with no fan: 3 x Analogue, 4 x Digital, Controller with fan: 6 x Analogue, 4 x Digital |
| Output Specifications | 4-20 mA (500 ohms max load) |
| Digital Output Specifications | Alarm 1, Alarm 2, Alarm 3, Fault Relay Rated 3.0 A @ 30VDC |
| MODBUS | RS485 |
| Mimic Part Number | M2001 (or MODBUS) |
| Dimension | 400 x 315 x 110 mm (L, W, D) |
| Material Enclosure | ABS Plastic |
| Mounting | Wall mount |
| Operating Temperature | -10°C to 40°C |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Warranty | 12 Months |
