This Sounder Beacon (RED only) all in one unit is especially industrial specific as it is IECEx rated with a 120dB sounder while maintaining an IP66 Rating. All while having the option to select from 64 different sound options all with internal volume switch and with the rotating RED beacon being able to be set to your desired speed.
| Modes of Operation | Sounder / LED Lens / Rotating Reflection |
|---|---|
| Light Colour | Green, Red, Yellow, Blue (Choose 1) |
| Sounder Output | 110 dB @ 1 m MAX 120 dB @ 1 m |
| Sounder Specifications | 64 user selectable tones |
| Recommended Supply Voltage | 24 VDC |
| Supply Voltage Range | 12 VDC to 48 VDC |
| Supply Power (Max.) | 19.2 W @ 24 VDC |
| Supply Current (Max.) | 1.5 A @ 24 VDC |

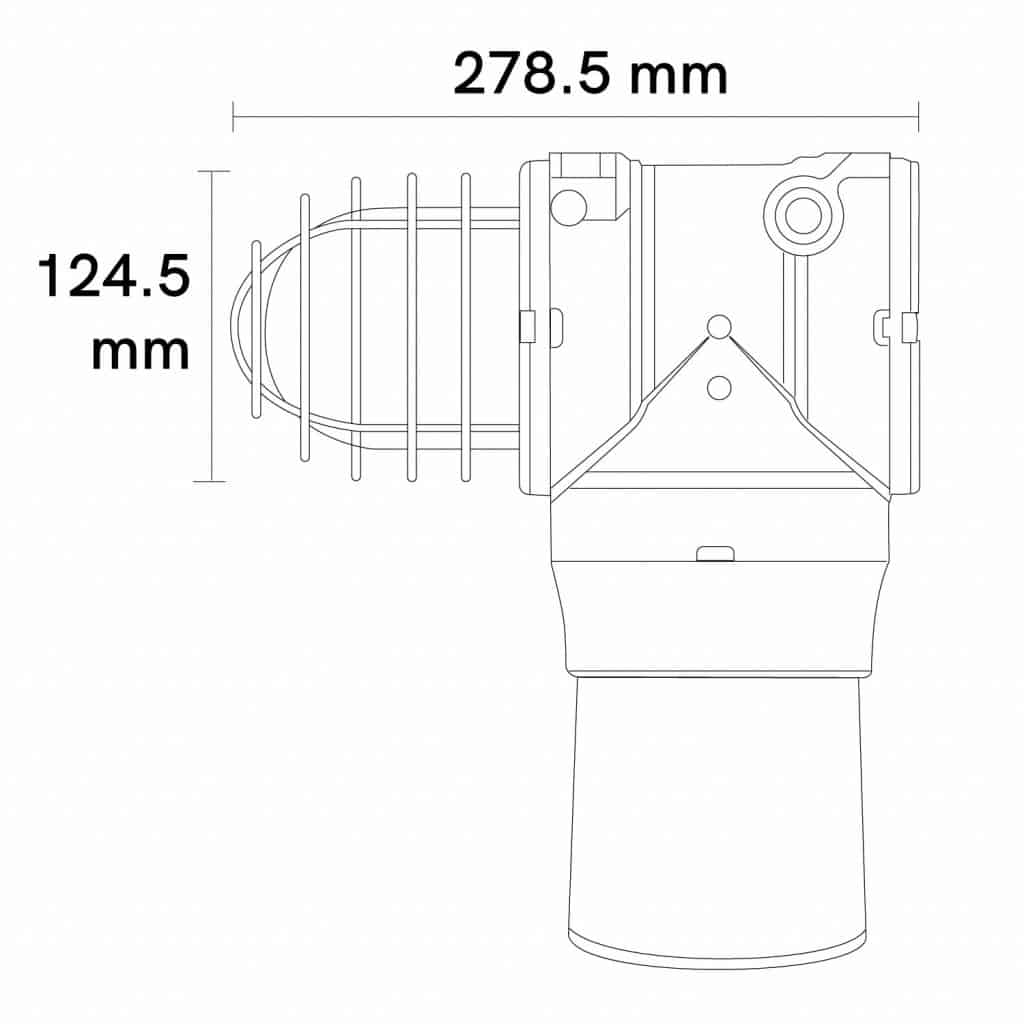

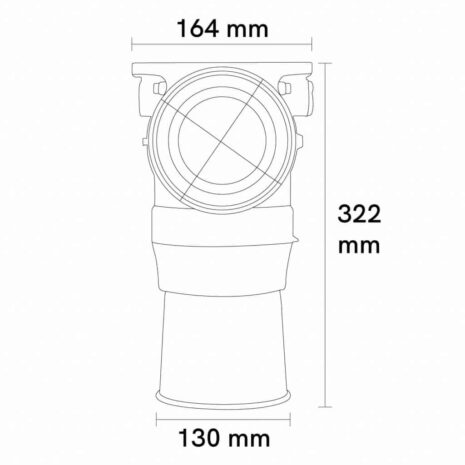

| Dimension | 164 x 279 x 322 mm (H, W, D) |
| Material Enclosure | Body : ALDC12, Glass : Explosion-proof Tempered glass, Protection case: SS316L |
| Mounting | Wall mount |
| Cable Entry | 2 x 3/4" NPT |
| Operating Temperature | T4: -40 to 70°C |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| IP Rating | IP66 |
| Certification | Ex d IIC T6…T4 Gb |
| Warranty | 2 Years |
