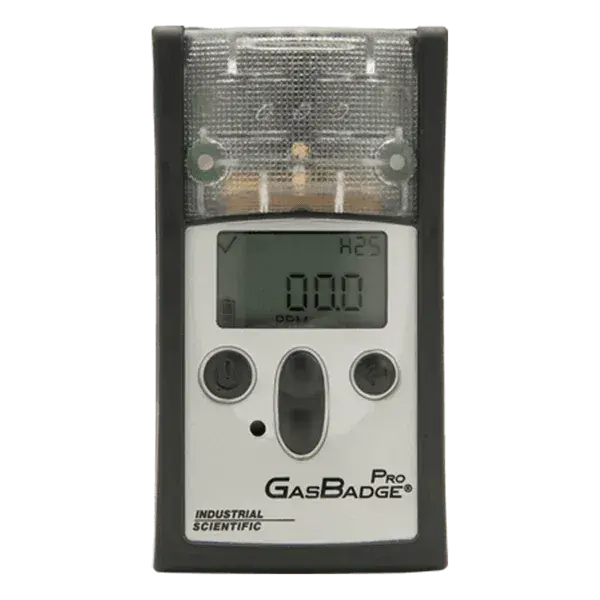

GasBadge Pro
Built to Industrial Scientific’s highest quality and reliability standards, GasBadge® Pro provides a lifetime of gas hazard protection with more features than any other single gas monitor available.
Need Assistance? 1300 432 937
Built to Industrial Scientific’s highest quality and reliability standards, GasBadge® Pro provides a lifetime of gas hazard protection with more features than any other single gas monitor available. Interchangeable “smart” sensors enable the GasBadge Pro to be quickly adapted to monitor unsafe levels of oxygen or any one of the following toxic gases: carbon monoxide, hydrogen sulfide, nitrogen dioxide, sulfur dioxide, chlorine, chlorine dioxide, phosphine, ammonia, hydrogen cyanide and hydrogen.
| Warranty | Guaranteed for Life™ – Instrument is warranted for as long as supported by Industrial Scientific Corporation (excluding sensors, batteries, and filters). CO,H2S, and O2 sensors are warranted for 2 years. All other sensors warranted for1 year |
|---|---|
| Case Material | Rugged, water-resistant polycarbonate shell with protective concussion-proof overmold. RFI resistant. |
| Dimensions | 9.4 x 5.08 x 2.79 mm (3.7 x 2 x 1.1 in ) |
| Weight | 85g (3oz) |
| Sensors | CO, H2S, O2, NO2, SO2, NH3, CI2,CIO2,PH3, HCN, H2, CO/H2Low |
| Sensor Measuring Ranges | CO: 0-1,500 ppm in 1 ppm increments CO/H2 low: 0-1,500 ppm in 1 ppm increments H2S: 0-500 ppm in 0.1 ppm increments O2: 0-30% by vol in 0.1% increments NO2: 0-150 ppm in 0.1 ppm increments SO2: 0-150 ppm in 0.1 ppm increments NH3: 0-500 ppm in 1 ppm increments Cl2: 0-100 ppm in 0.1 ppm increments ClO2: 0-1 ppm in 0.01 ppm increments PH3: 0-10 ppm in 0.01 ppm increments HCN: 0-30 ppm in 0.1 ppm increments H2: 0-2,000 ppm in 1 ppm increments |
| Display | Custom LCD with graphical icons for easy use; Segmented display for direct gas readings; Backlight for low light conditions; “Go/No Go” display mode; Peak reading indication |
| Alarms | User selectable low and high alarms Ultra-bright LEDs, loud audible alarm (95 dB) and vibrating alarm |
| BATTERY RUN TIME | User replaceable 3V, CR2 Lithium battery, 2,600 hour run time, typical |
| Data Logging | 1 year continuous storage of data |
| Event Logged | Continually on. Logs last 15 alarm events, stamping how long ago the event occurred, the duration of the event, and the peak reading seen during the event. Event-logger can be viewed on PC or printed directly from the instrument to an infrared printer. |
| Temperature Range | -40 ºC to 60 ºC (-40 ºF to 140 ºF), typical |
| Humidity Range | 0% to 99% RH (non-condensing), typical |
| IP Rating | Third-party certified IP64 |
