2 Channel Gas Detection Controller with LCD Display
This complete 2 channel controller packs a punch with the ability to give you many options within a single package.
Need Assistance? 1300 432 937
This complete 2 channel controller packs a punch with the ability to give you many options within a single package. This unit boasts 3 analogue outputs while having 3 alarm levels for each input channel, a fault relay is also ready to inform you of a system error. This controller allows you to have 2 input zones with 2 output zones as well. You can configure it in many ways, for example one input can be %LEL while the other can be a ppm sensor, you can also have both channels showing high and low oxygen alarms.
| Display Type | LCD |
|---|---|
| User Interface Type | PCB Buttons |
| Supply Power (Avg.) | 24 VDC @ 3.2 A |
| Power Supply Rating | 230 VAC 1.52 A |
| Inputs | 2 x Channels |
| Input Specifications | 2-Wire Loop Powered / 3-Wire 4-20 mA |
| Outputs | 3 x Analogue, 7 x Digital |
| Output Specifications | 4-20 mA (500 ohms max load) |
| Analogue Output Specifications | 0 – 20 mA or 4 – 20 mA |
| Digital Output Specifications | Alarm 1, Alarm 2, Alarm 3 (for each channel), Fault Relay Rated 3.0 A @ 30VDC |
| MODBUS | RS485 |
| Mimic Part Number | M2001 (or MODBUS) |

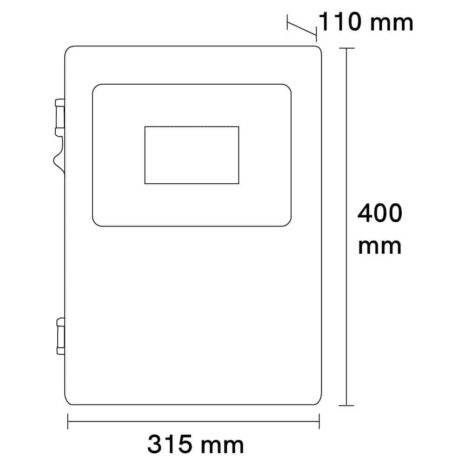

| Dimension | 400 x 315 x 110 mm (L, W, D) |
| Material Enclosure | ABS Plastic |
| Mounting | Wall mount |
| Operating Temperature | -10°C to 40°C |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Warranty | 12 Months |
